Introduction

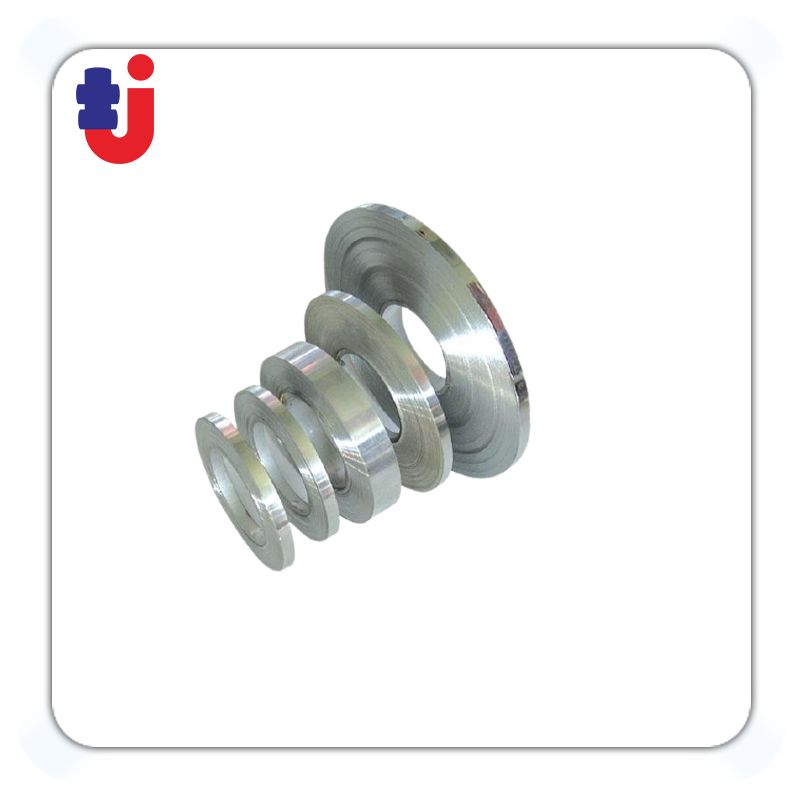

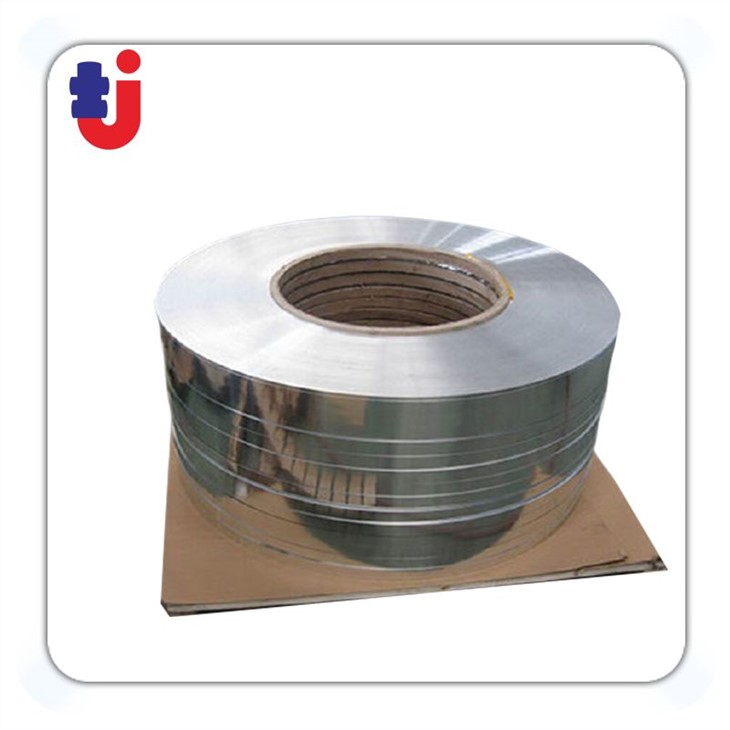

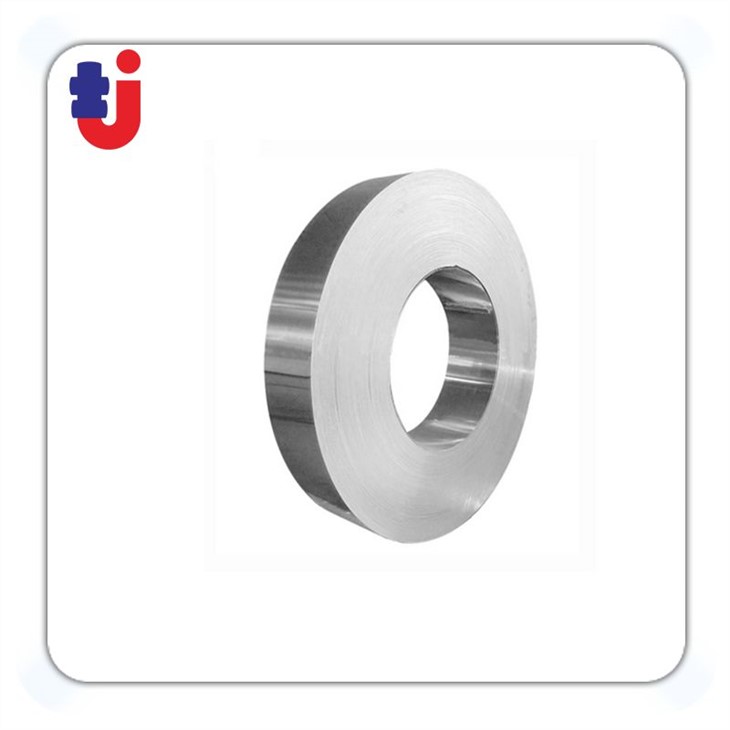

Thin flat aluminum alloy strip roll is an aluminum deep-processed material that by slitting big Jumbo aluminum coils into narrow width such as 10mm 20mm 50mm 100mm and customized width. The common series are 1000,3000,5000 and 8000 series.
|
Alloy |
1050 1060 1070 3003 3105 3005 5052 5182 5754 8011 etc |
|
Thickness |
0.2mm ~3.0mm |
|
Width |
≥10mm |
|
Surface |
Mill finish,color coated,with holed ,profiled |
|
Elongation |
≥10% |
|
Usage |
Caps, shutter, insulation strip, transition, lamp, decoration etc |
|
Standard |
GB/T3190-2008, GB/T3880-2006, ASTB209, ISO9001, etc |
|
MOQ |
1000KGS |
Advantage
1) Long service life, a construction, you can benefit for many years, cost-effective.
2) Light weight, high strength, excellent rigidity, and superior impact resistance
3) Aluminum strip roll are value-preserving, waste aluminum can be recycled
4) Excellent surface flatness and smoothness
5) Heat insulation, sound insulation, fire prevention.
End Application
Thin flat aluminum alloy strip roll is widely for different purpose including cosmetic packaging, caps, lamp base, transformer, optical cables, fin radiator, heater, cables, blinds and shutter, fan, etc.
Our factory have equipmentted with two slitting lines in taojia plan, one is 1550mm line, the other is 1700 line to meet customer required different size aluminum strip, this slitting line annual capacity more than 18000MT, Line speed is 100mm/min, Finish width arrange is 15~1600mm.
Package & Shipping
|
Coil I.D |
150/200/405 /505mm |
|
Coil O.D |
≤1000mm |
|
Package Method |
Wooden pallet |
|
Package weight |
≤2000kgs |
|
Shipping method |
By sea or train |
|
Container loading |
20tons loading in 20ft container |
We are looking for receive your inquiry on our thin flat aluminum alloy strip roll.
