Specification
|
Alloy |
1050, 1060, 1100, 3003, 5005, 5052, 5083, 3105,3005,5754 etc |
|
Temper |
O, H12, H14,H16, H18, H22, H24, H26 |
|
Thickness |
0.5~3mm |
|
Width |
300~1600 |
|
Surface treatment |
PE, PVDF,HDPE coated |
|
Color |
White ,green , black or as per customer’s sample |
|
End application |
Decoration industry ,Roofing,Freezer,oil Pipe,Electronics, Machinery et |
|
MOQ |
2tons |
|
Material quality |
Free of defects like oil stain,Roll Marks,Waves,Dents, Scratch etc ,A+++ quality |
|
Quality Standard |
ASTM B209,EN573-1 |
Diamond embossed aluminum coil is one kind of embossed aluminum products, thickness arranged from 0.2mm to 3.0mm , width not more than 1600mm, availble treatments including PVDF, PE coating, Anodized, And Polished treatment, the surface looks good with third dimension view, After embossed, it enhance the thickness and strength of aluminum. As a new decorative material, Diamond embossed coil widely used for roofing system, insulation, decorative etc.

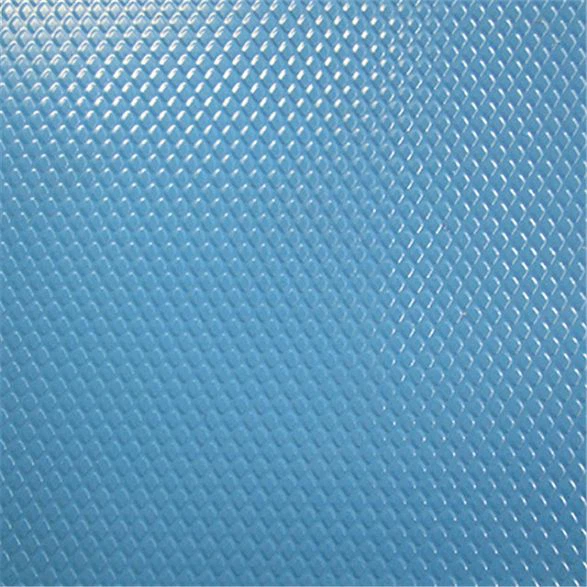

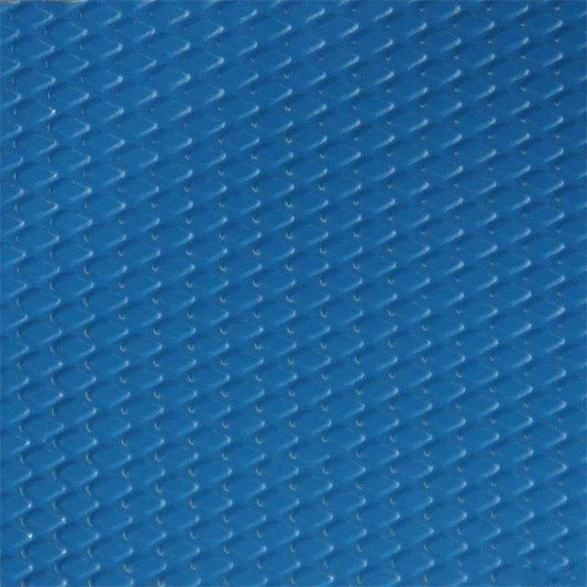

Diamond Embossed Pattern Picture

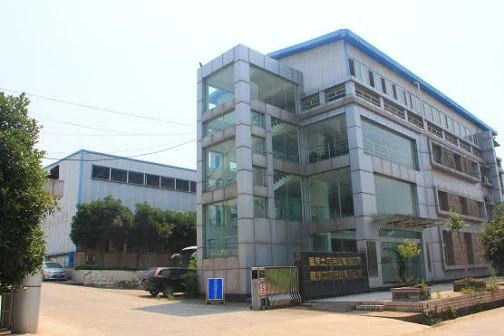

Factory Facility Introduction

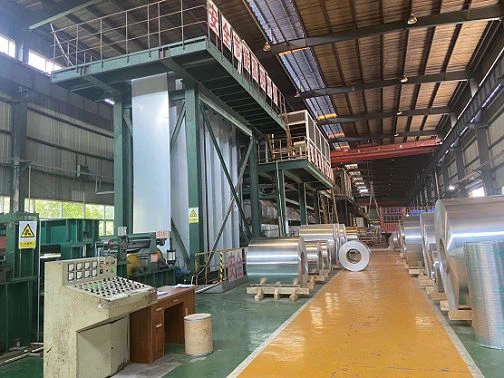

Roller coating line: it coated in Taojia plant, 520m length, 15m height, Owns advanced production technology and staunch technical personnel team. Monthly capacity at 1800MT, Annual capacity at 2000MT. It can handle substrate thickness range of 0.2~1.2mm. width range of 700~1600mm, line speed is 20~50m/Min.
Corrugated embossed line: there is a corrugated line and embossed line (stucco & diamond pattern ) in Taojia plant. It can process 620mm ~1300mm coil, Annual capacity more than 2000MT. Our diamond embossed aluminum coi produced by this embossed line.

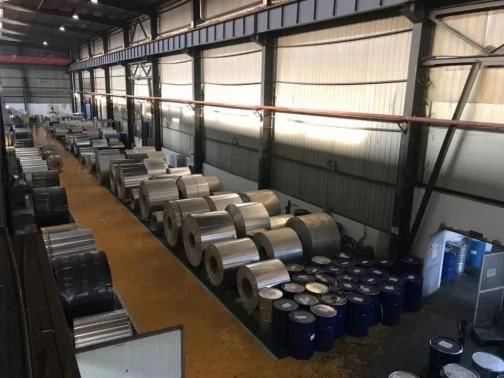

Slitting Line: there are two slitting lines in plant. one is 1550mm line, the oother is 1700mm line, Annual capacity more than 1800MT, Line speed is 100m/min, finished coil width range is 15~1600mm
FAQ
Q1. Are you manufacturer or trade company?
A. We are professional aluminum material manufacturer for 10 years in Chongqing ,China.
Q2. Is the sample available?
A. Yes, we are providing free of samples are available for you to check the quality once confirmed after 1~2d
Q3. Would you have a discount if l have a large order?
A. Yes we could offer different discount according to your order quantity.
Q4: What's the payment terms?
A: T.T with 30% downpayment,70%before shipment.or L/C at sight.
